Remote Monitoring of Pumping Station

Build a monitoring center to achieve unattended

Equipment remote monitoring

Data is online in real time

Efficient fault alarm

Data report analysis

Equipment remote maintenance

Process flow visualization

Demand context

需求背景

With the development of cities, pumping stations, as water supply hubs, play a very important role in residential and industrial water use. There are more and more pumping stations, and their distribution is scattered. Issues that water companies must consider. For the traditional monitoring of pumping stations, the staff is used to check regularly, and sometimes the personnel are negligent, resulting in abnormal operation of the pumping station. At the same time, this method is very troublesome for the monitoring of multiple pumping stations; the data between different pumping stations cannot be effectively integrated. Together, data warning and equipment maintenance cannot be carried out through big data. Therefore, in this context, Wutong Bolian adopts the industrial intelligent gateway to realize the collection and processing with the pump room PLC to remotely monitor the pumping station, and at the same time realizes the data of the pumping station through the Wutong Bolian cloud platform or the customer's self-developed cloud platform. Forecasting, equipment remote maintenance and data sharing.

Solution

解決方案

The WTBL industrial intelligent gateway is connected to the pump room PLC controller, collects the operating status of the pump station in multiple directions, accesses the Internet through 5G/4G/WIFI, etc., and transmits the data to the pump station monitoring center (Wotong Bolian equipment data cloud platform or self-developed cloud platform); managers can remotely monitor the status of the pump station at any time in the pump station monitoring center or mobile terminal, and colleagues can remotely configure, diagnose and modify the pump station PLC program through the equipment express line, so that the pump station is unmanned. on duty.

Internet of Everything

Intelligent Collection

Edge Computing

Cloud Application

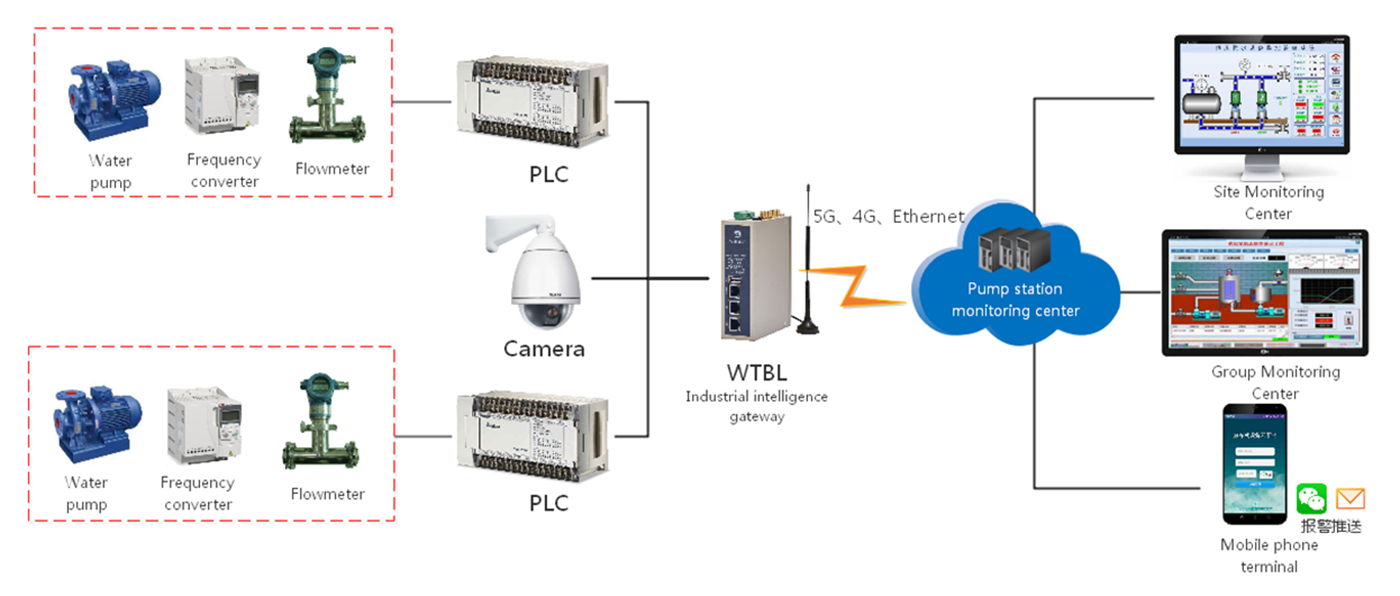

Schema topology

方案拓撲

Programme benefits

方案效益

Equipment remote monitoring

Realize remote monitoring of pumps, frequency converters, flow meters, PLCs and other equipment in pumping stations

Data is online in real time

The data is transmitted to the monitoring center of the pump station, and the status of the station can be remotely monitored at any time.

Efficient fault alarm

Automatic alarm for equipment failure, and alarm information is automatically pushed to the manager's mobile phone

Equipment remote maintenance

Remote configuration, diagnosis and modification of the PLC program of the pump station are realized through the equipment express line to ensure the healthy operation and service life of the equipment.

Process flow visualization

Configuration monitoring to realize visual monitoring and management of process flow

Data report analysis

Integrate and analyze data from multiple dimensions, provide big data support for pumping stations, and facilitate digital management and operation

Application case

應(yīng)用案例

Realize the data visualization of factory
equipment network operation management and production line monitoring
and data interconnection of various information systems

Classic customers:：
三一重工、京東方、富士康、寧德時代、愛仕達……

Smart factory production line equipment interconnection and monitoring project

Realize data acquisition, remote control and maintenance of on-site equipment
Realize the monitoring of real-time data, historical data and alarm data
Realize operation management of field equipment and visual monitoring of production line data

Application industry projects:
rural sewage monitoring, urban sewage monitoring, secondary water supply monitoring……

Industry project IoT monitoring platform construction

Build a safe and reliable maintenance channel
Realize remote operation and maintenance of equipment distributed around the world
Reduce operating costs and improve service quality

Application industry:
water treatment equipment, construction machinery equipment, industrial lubrication equipment……

Distributed equipment remote maintenance management system
